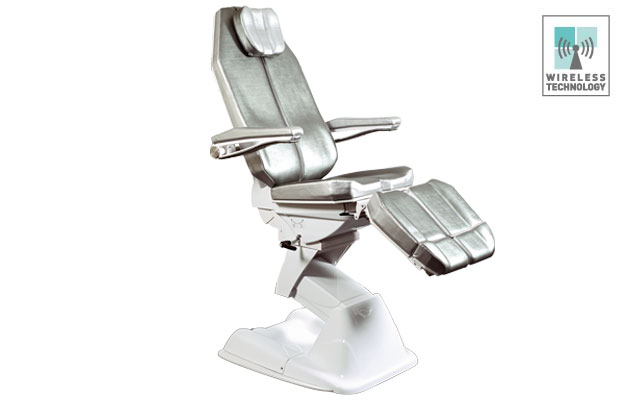

Professional podiatry chair with innovative design and high technical performance with unique feature: all the pillows are easy removable thanks to a magnete system.
Equipped with 3 linear motors operating independently the seat, (up to Trendelenburg position +25° inclination) the backrest and the up/down movement. 5 motor-version with electrical legrest, available on request.

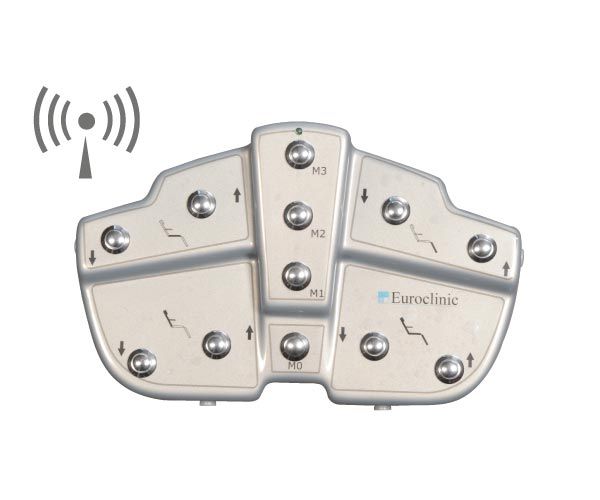

LYNEA can be controlled in each movements by a multifunctional pedal (WIRELESS optional) or by the Touch screen of the combined podiatry unit, if present. The pedal is also provided with 4 memories: 3 memorized positions chosen by the operator and “zero” resting position.
All the upholstered parts (removable) of the chair are composed of high-density and undeformable foam pelted with bi-elastic, tear resistant, antimicrobial skai, very easy to clean. 40 different colours available. The armrest are pelted and reclining allowing an easy entrance of the patient by the side.

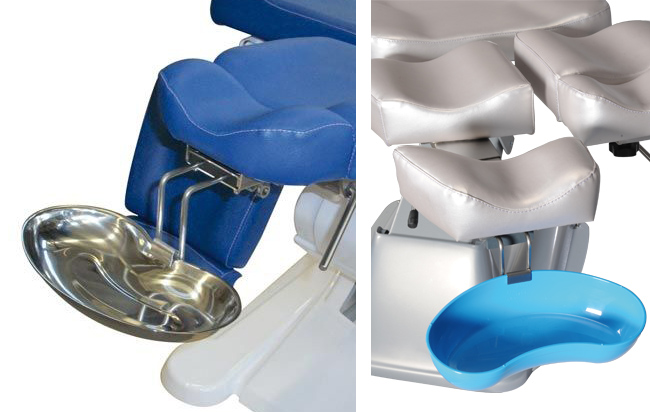

The double splitted legrests are extendable and manually operated by lever and provided with stainless steel internal supports. These are also equipped with extendable and anatomical footrests
| NAME | VALUE |
|---|---|
| Feeding tension | 100-240 VAC 50/60 Hz |
| Low tension motor | 24 Vdc |
| Lifting motor push | 6000 N |
| Backrest motor push | 6000 N |
| Backrest motor push | 6000 N |
| Lifting Capacity | 220 Kg |
| Absorbed power | 200VA |
| Chair weight | 120 Kg |

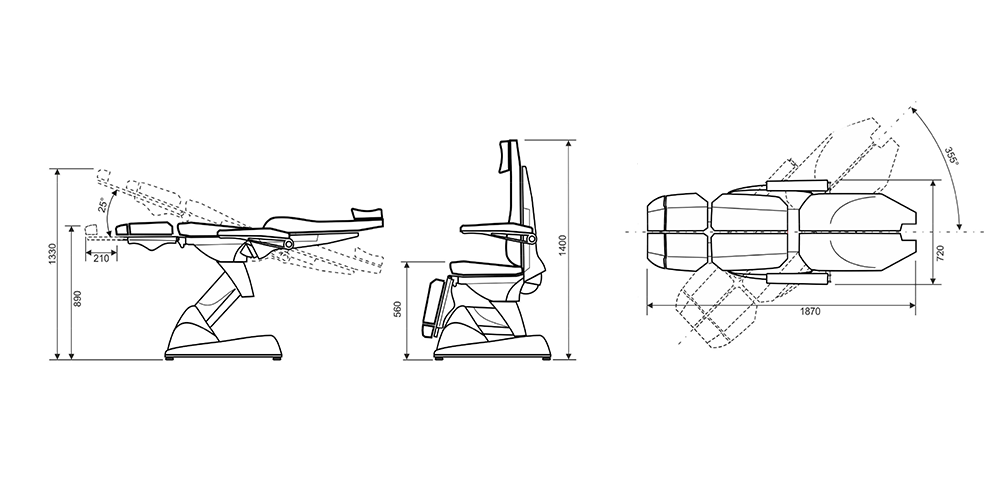

| Base length | 800 mm |
| Maximum legrest height | 1330 mm |
