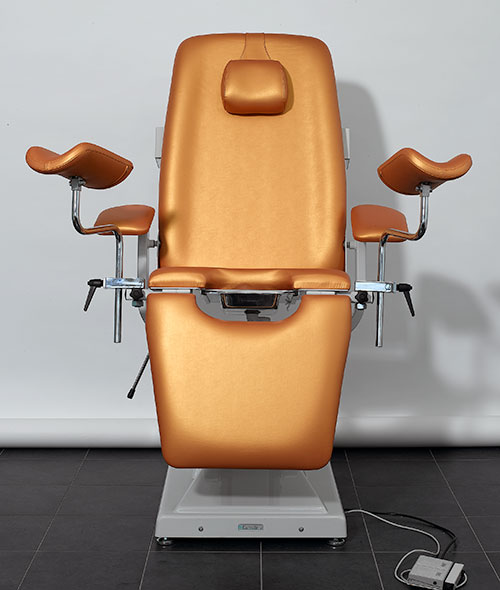

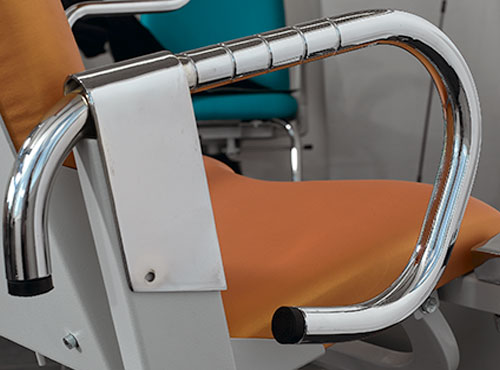

Gynex chair synthesizes functionality, aesthetics, and ergonomics. It is suitable for any physique, granting maximum comfort to the patient, the padded and pelted arm-rests allow a relaxing and protecting sitting position and they are singularly revolving and removable.
The backrest is provided with removable and adjustable head-rest in height.
This chair is moved by a silent low tension actuator, which allows a vertical excursion of 40 cm, starting from zero position. Backrest and leg rest are manually moved.
In the Gynex 2 motors version, there is 1 additional motor for the backrest while in the Gynex Professional version, the chair is provided also with a third motor for the electrical adjustment of the backrest and so for a rapid changing into a couch bed.

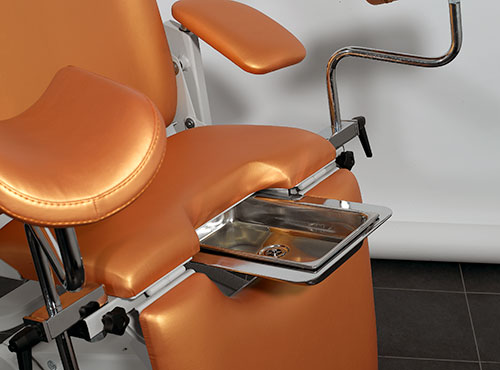

Nr. 1 plastic basic with capacity 2 lt. included in the standard version.
| NAME | VALUE |
|---|---|
| Power supply tension | 230 Vac +/- 10% 50/60 Hz |
| Motor tension | 24 Vdc |
| Max absorbed power | 145 V.A |
| Lifting motor | 8000N |
| Backrest motor (for 2 motors version) / backrest push | 2500N / 800N |
| Lifting capacity | 200 Kg |
| Chair weight | 100 Kg |
| Fuses protection | 1 A T - 250 V A C |
| NAME | VALUE |
|---|---|
| Fuses protection | 1,6 AT |
| Chair weight | 100 Kg |
| Lifting capacity | 200 Kg |
| Legrest motor | 2500N |
| Backrest motor | 2500N |
| Lifting motor | 8000N |
| Max absorbed power | 145 V.A |
| Motor tension | 24 Vdc |
| Power supply tension | 230 Vac +/- 10% 50/60 Hz |
